The Anti-Explosion ACM-PSR Micro-Grinding System is designed according to the GB (National Standard) and EN(European Standard) Standards on "Calculation, design and test of anti-impact pressure vessels" and "Dust Explosion Depressurization".
PSR11 design pressure:
For mills, cyclones, pipes and rotary valvesP=11bar(Kg/cm²)
P=1.1MPa)(N/mm²)
For ultrafine dust collectorP=2.5bar(Kg/cm²)
P=0.25MPa)(N/mm²)

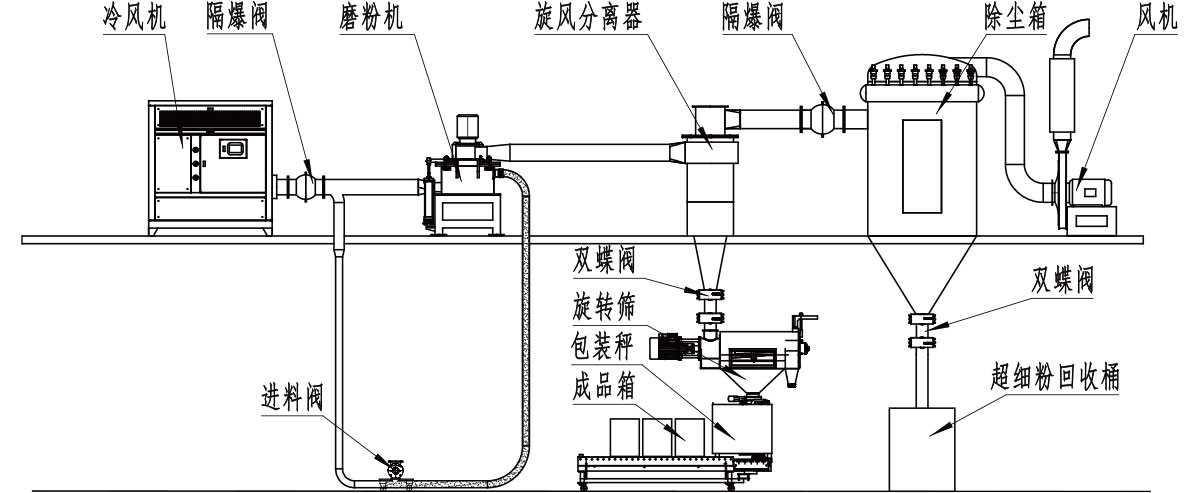

The ACM-PSR system is designed and installed with explosion-blocking valve and dust explode-discharging device.

All components and pipes of ACM-PSR system have reliable equipotential ground connection protection.

All electrical housings protection adopts IP55 standard.

In the event of a dust explosion, ACM-PSR Series Explosion-resistant Pressure Impact Type Micro-powder Pulverizing System will automatically cut off the power supply immediately.
