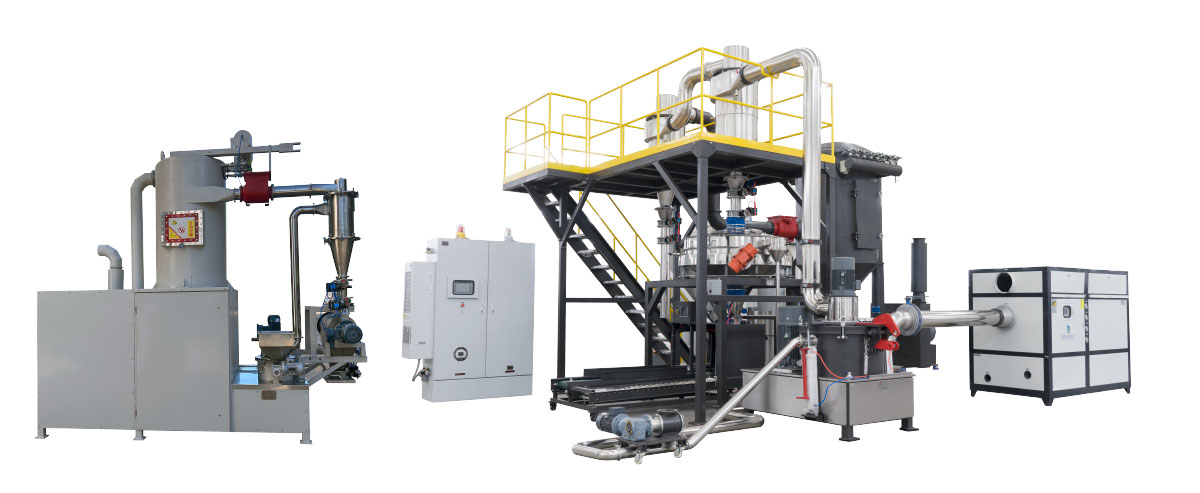

ACM Series Vertical Mill is composed of high speed air classifying mill, cyclone separator, rotary (centrifugal) sieve, fine dust collector and fan. It has the functions of high speed crushing, airflow classification, cyclone separation, screening powder and ultrafine powder collection. The ideal particle size distribution can be obtained by adjusting operation parameters. ACM Series Vertical Mill can also be used for crushing pigment, calcium powder, carbonate powder, medicine and food.
-
Particle size distribution is concentrated, stable and adjustable.
High recycling rate (note 98%).
Small temperature rise of mill, and low powder temperature.
Low noise, and easy cleaning.
Controlled by touch screen and PLC, friendly human-machine interface, and easy to operate.
-
The technical parameters are under formulated management.
The production management personnel can monitor in the office.
Comprehensive safety system.
Easy cleaning and maintenance.
High whole machine reliability.
-
Product
-
.
-
About Us
-
Contact Us
Tel： 86-631-3603188
Mobile： 86-157 2535 8772 (Domestic)
86-181 6200 7266 (International)
E-mail：decaisales@decaimach.com
-
Follow Us
Wechat
PRODUCT
ACM Series Vertical Mill
Technical features
Technical Parameter
| Model | Output(kg/h) | Main Mill Power(kW) | Main Mill Rotation Speed(rpm) | Auxiliary Mill Motor(kW) | Fan(kW) | Dimension (mm) |
| ACM-01 | 5-10 | 1.1-1.5 | 18000 | 0.37-0.55 | 2-3 | 2550*1532*2450 |
| ACM-05 | 50-60 | 3-4 | 9000 | 0.55-0.75 | 3-4 | 1900*1500*2200 |
| ACM-10 | 150-200 | 5.5-7.5 | 7000 | 1.1-1.5 | 7.5-11 | 6000*2000*2200 |
| ACM-20 | 200-300 | 11-18.5 | 6000 | 2.2-4 | 15-22 | 7000*2800*3000 |
| ACM-30 | 500-600 | 18.5-30 | 5600 | 3-5.5 | 18.5-37 | 8000*2800*3000 |
| ACM-40 | 600-800 | 45 | 5600 | 3-5.5 | 55 | 9000*3500*3500 |
| ACM-50 | 800-1000 | 55 | 4800 | 4-7.5 | 75 | 10000*3500*3500 |
| ACM-60 | 1000-1200 | 37-55 | 4800 | 4-11 | 90 | 11000*3500*3500 |
