The YPJ Series Stainless Steel Slat Cooling Crusher is composed of cooling compression roller, stainless steel strip conveyor belt, crusher and air cooling system. The hot-melt materials from extruder are squeezed to thin sheet with thickness 1-2mm by cooling compression roller, air cooled down on the stainless steel strip conveyor belt to normal temperature by cooling roller during conveying, conveyed to crusher, and then crushed into chips and discharged. Air filtration and heat exchange system can be selectively equipped.
-
Air cooling.
Comprehensive safety system.
Stainless steel strip conveyor belt.
Easy cleaning and maintenance.
-
Adjustable thickness of chips, homogeneous chip size.
High whole machine reliability.
Low energy consumption.
-
Product
-
.
-
About Us
-
Contact Us
Tel： 86-631-3603188
Mobile： 86-157 2535 8772 (Domestic)
86-181 6200 7266 (International)
E-mail：decaisales@decaimach.com
-
Follow Us
Wechat
PRODUCT

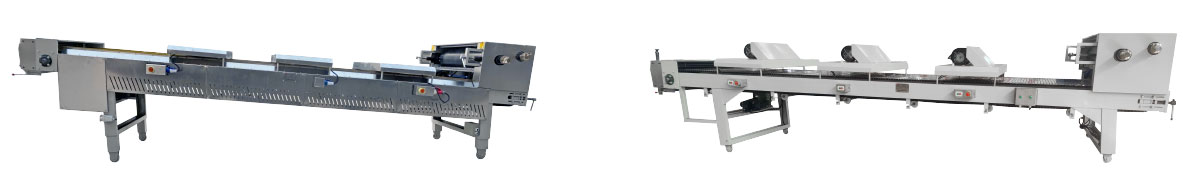

YPJ Series Stainless Steel Slat Cooling Crusher
Technical features
Technical Parameter
| Model | Output(kg/h) | Belt Length(mm) | Belt Width(mm) | Compression Roller Diameter(mm) | Drive Power(kW) | Fan Power(kW) | Dimension(mm) |
| YPJ-103 | 30-50 | 1300 | 300 | 106 | 4-0.55 | 0.12-0.25 | 3000×610×800 |
| YPJ-305 | 60-100 | 3000 | 500 | 130 | 9.2-1.1 | 0.12-0.25 | 4000×840×920 |
| YPJ-408 | 150-250 | 4600 | 800 | 159 | 9.2-1.1 | 0.12-0.25 | 5040×1142×1008 |
| YPJ-5010 | 250-350 | 4600 | 1000 | 219 | 1.1-1.5 | 0.12-0.25 | 5300×1380×1330 |
| YPJ-5012 | 400-600 | 4600 | 1200 | 219 | 1.1-1.5 | 0.12-0.25*2 | 5300×1380×1310 |
| YPJ-6012 | 500-800 | 5800 | 1200 | 316 | 1.5-2.2 | 0.12-0.25*2 | 6300×1684×1108 |
| YPJ-7012 | 800-1000 | 6800 | 1200 | 418 | 2.2-3 | 0.12-0.25*2 | 6000×1500×1600 |
