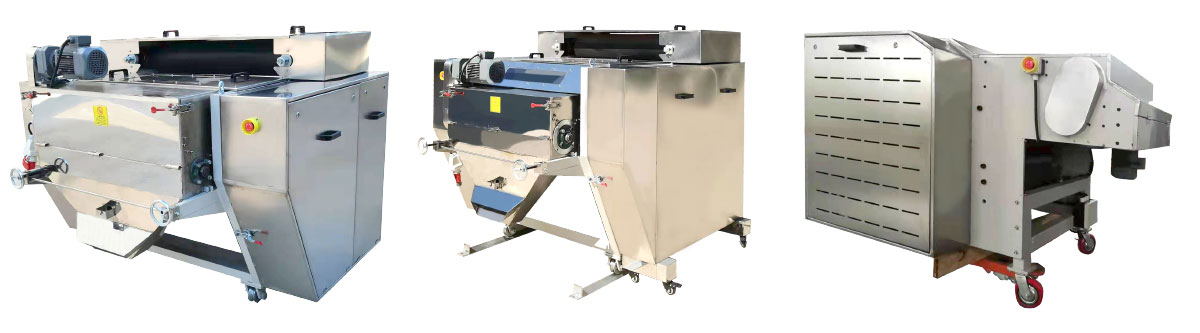

YPR Series Compact Cooling Crusher is composed of compression roller, cooling roller, artificial rubber conveyor belt and crusher. The hot-melt materials from extruder are squeezed to thin sheet with thickness 1-2mm by compression roller and cooling roller, cooled down to normal temperature by cooling roller during conveying, conveyed to crusher, and then crushed into chips and discharged.
-
The whole structure is compact, and can save more than 65% work site if compared to other series of tablet press.
The anti-static, heat-resistant and flame-retardant artificial rubber conveyor belt is adopted.
The large-diameter cooling roller cylinder is adopted, thus has high cooling efficiency and low operation costs.
Adjustable thickness of chips, homogeneous chip size.
-
Comprehensive safety system.
Easy cleaning and maintenance.
High whole machine reliability.
Economical and applicable, and high cost performance.
-
Product
-
.
-
About Us
-
Contact Us
Tel： 86-631-3603188
Mobile： 86-157 2535 8772 (Domestic)
86-181 6200 7266 (International)
E-mail：decaisales@decaimach.com
-
Follow Us
Wechat
PRODUCT
YPR Series Compact Cooling Crusher
Technical features
Technical Parameter
| Model | Output(kg/h) | Big Roller Diameter(mm) | Small Roller Diameter(mm) | Belt Width(mm) | Crushing Motor Power(kW) | Conveying Motor Power(kW) | Dimension(mm) |
| YPR-50 | 40-60 | 320 | 130 | 400 | 0.12-0.2 | 0.75-1.1 | 855*950*860 |
| YPR-100 | 80-120 | 421 | 155 | 600 | 0.55-0.75 | 1.1-1.5 | 1200*1290*950 |
| YPR-200 | 200-250 | 600 | 215 | 1000 | 0.75-1.1 | 1.5-2.2 | 1600*1720*1420 |
| YPR-300 | 250-300 | 800 | 131 | 1000 | 0.75-1.1 | 1.5-2.2 | 1475*1320*1735 |
| YPR-500 | 400-500 | 880 | 240 | 1000 | 0.75-1.1 | 2.2-3.0 | 1800*1986*1530 |
| YPR-1000 | 600-800 | 1000 | 240 | 1300 | 1.1-1.5 | 2.2-3.0 | 2300*2150*1840 |
