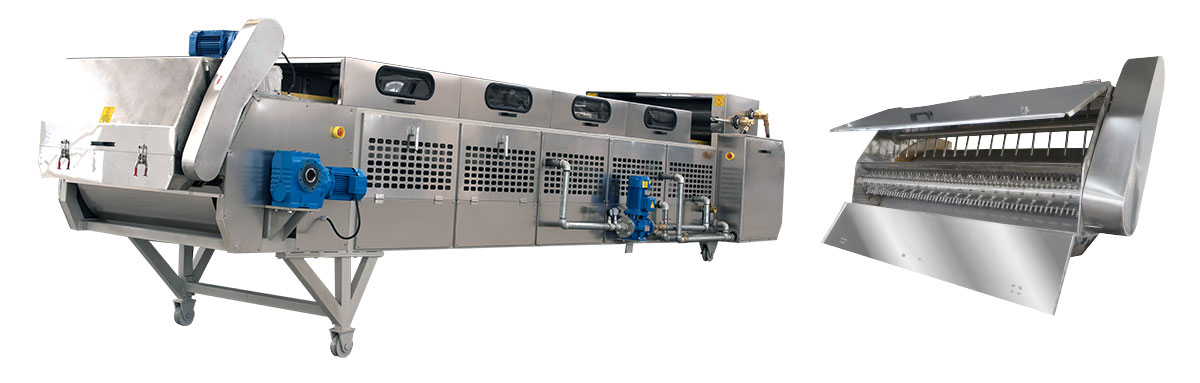

GYPJ Series Stainless Steel Belt Cooling Crusher is composed of cooling roller, stainless steel conveyor belt, crusher and cooling water spraying system. The cooling water spraying system is used to cool down stainless steel belt. The hot-melt materials from extruder are squeezed to thin sheet with thickness 1-2mm by cooling roller, cooled down on the stainless steel conveyor belt to normal temperature, conveyed to crusher, and then crushed into chips and discharged.
-
High quality stainless steel belt, able to work under dynamic tension and variable temperature in the long run.
Adjustable thickness of chips, homogeneous chip size.
No chip pollution.
Comprehensive safety system, and easy cleaning and maintenance.
High whole machine reliability.
-
Product
-
.
-
About Us
-
Contact Us
Tel： 86-631-3603188
Mobile： 86-157 2535 8772 (Domestic)
86-181 6200 7266 (International)
E-mail：decaisales@decaimach.com
-
Follow Us
Wechat
PRODUCT
GYPJ Series Stainless Steel Belt Cooling Crusher
Technical features
Technical Parameter
| Model | Output(kg/h) | Belt Effective Length(mm) | Belt Effective Width (mm) | Main Motor Power(kw) | Dimension (mm) |
| GYPJ-526 | 50-100 | 2600 | 500 | 0.55-0.75 | 4000*1200*1600 |
| GYPJ-640 | 120-180 | 4000 | 600 | 1.1-1.5 | 5000*1300*1600 |
| GYPJ-850 | 200-300 | 5000 | 800 | 1.5-2.2 | 6000*1500*1800 |
| GYPJ-1060 | 350-600 | 6000 | 1000 | 1.5-2.2 | 7000*1700*2000 |
| GYPJ-1260 | 700-800 | 6000 | 1200 | 2.2-3.0 | 8000*1900*2000 |
| GYPJ-1570 | 900-1000 | 7000 | 1500 | 3.0-5.5 | 8000*2100*2000 |
