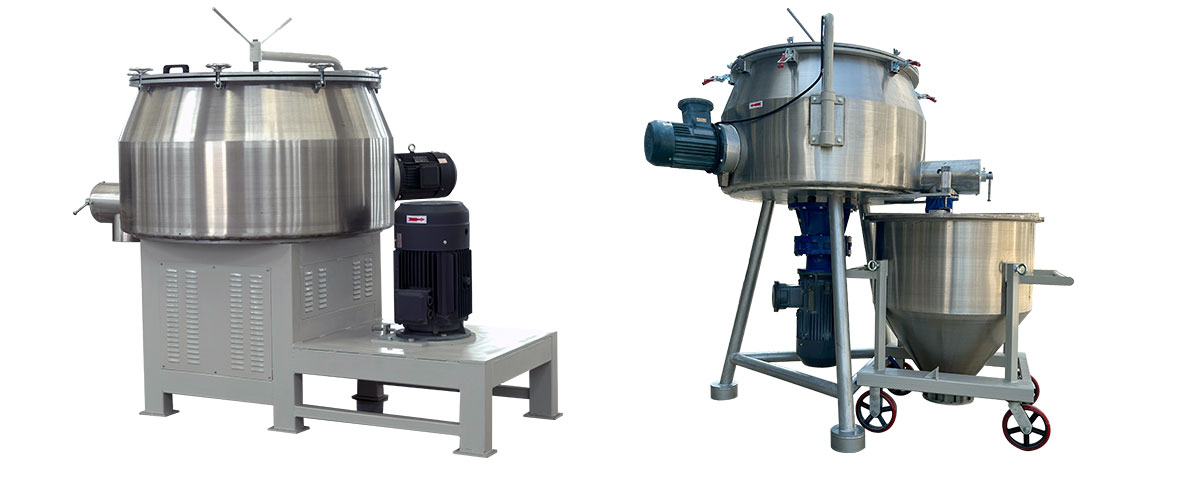

PHJ Series High Speed Pre-mixer

PHJ Series High Speed Pre-mixer is suitable for mixing powder and block solid chemical raw materials. The raw materials are mixed homogeneously and efficiently by the mixing blade and high speed crusher. It features advanced sealing design to avoid powder leakage.

Technical features

Well sealed, no leakage or solidification.

Automatic controlled mixing time, achieves homogeneous mixing in a short time.

Low temperature rise, efficient, convenient colour change and maintenance.

Safe to operate.

Technical Parameter

Model	Volume (L)	Mixing Particle Size (cm)	Mixing Time(min)	Mixing Motor(kw)	Crushing Motor(kw)	Dimension(mm)
FHJ-10	10	≤2	3-5	0.75-1.1	0.25-0.37	600×550×880
FHJ-30	30	≤2	3-5	2.2-3	0.25-0.37	700×600×800
FHJ-100	100	≤2	3-5	4-5.5	3-4	1450×1000×1290
FHJ-150	150	≤2	3-5	4-5.5	3-4	1480×1000×1290
FHJ-300	300	≤2	3-5	9.2-11	3-4	900×1350×1800
FHJ-500	500	≤2	3-5	11-15	2*3-4	1300×2000×1800
FHJ-800	800	≤2	3-5	22-30	2*3-4	1600×2000×1950
FHJ-1000	1000	≤2	3-5	37-45	2*5.5-7.5	1800×2200×2360
