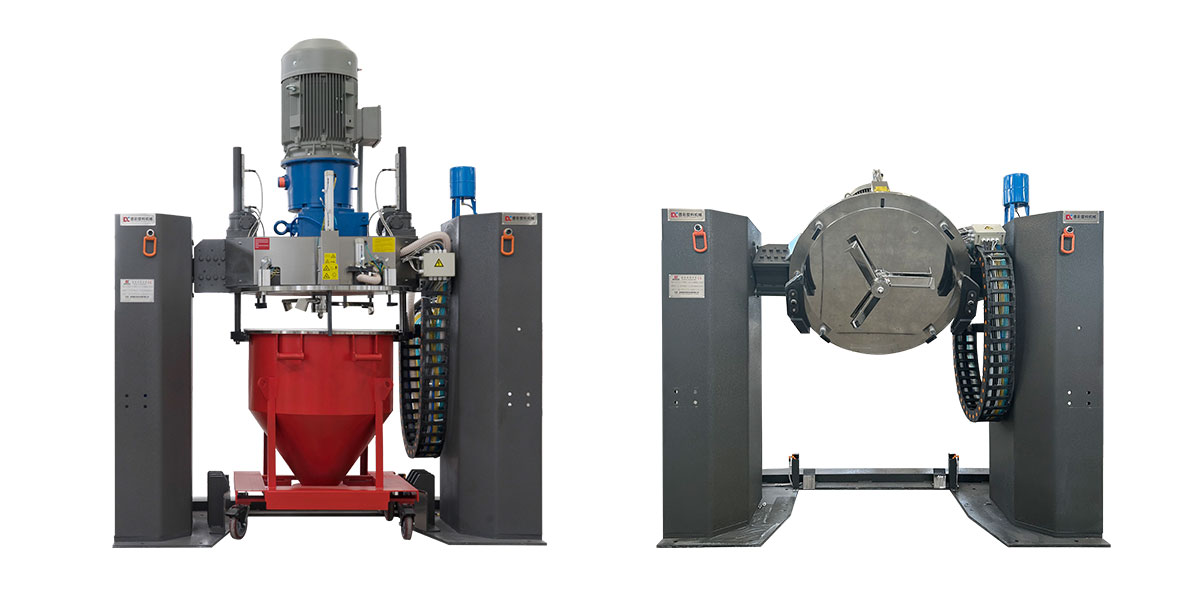

P Series Flipping Mixing Machines

Concepts of stirring machines in the industrial 4.0 era

The simplest cleaning/largest flexibility

Development concepts and directions of mixing in the industrial 4.0 era

During the introduction and localization of flipping mixing in more than 20 years, we have had many patents in the mixing schemes of settling the customers’ individualized materials, jointly developed them with customers, and made them become industry standards.

Advantages

High flexibility, high use efficiency of equipment, and small fault rate

One model of mixing machine can be equipped with multiple material cylinders with different diameter dimensions.

Very short cleaning time, and quick color change.

Moderate linear speed 4-15M/S, and small temperature rise of materials.

The ideal mixing effects can be reached within a short mixing time.
The liquid is injected through shaft (optional).

Interlayer water supply cooling (optional).

The sensor can be increased to detect the material temperature (optional).
The connection with AGV can realize the automation mixing (optional).

Technical features

Flexible offline production equipment with high utilization rate.

Efficient and homogeneous mixing result.

Multi-containers used for continuous operation, convenient colour change and cleaning.

Dual-sealed main shaft, no powder leakage or solid particles. Optional: Water-chilled stirring head.
automatic vacuum dust collection.

PLC-HMI automatic control. Comprehensive safety system.

Easy maintenance and preservation. High whole machine reliability.

Technical Parameter

Model	Volume	Stirring Motor Power	Rotating Motor Power	Dimension
FHJ-10	8	4-5.5	0.37	760410960
FHJ-150	120	11-15	0.55	1200×1420×2000
FHJ-450	300	30-37	0.75	2400×1700×2800
FHJ-600	480	55-75	1.1	2700×1800×3500
FHJ-1000	800	75-110	1.5	2900×2000×3900
FHJ-1500	1200	110-160	1.5-2.2	3300×2200×4000
