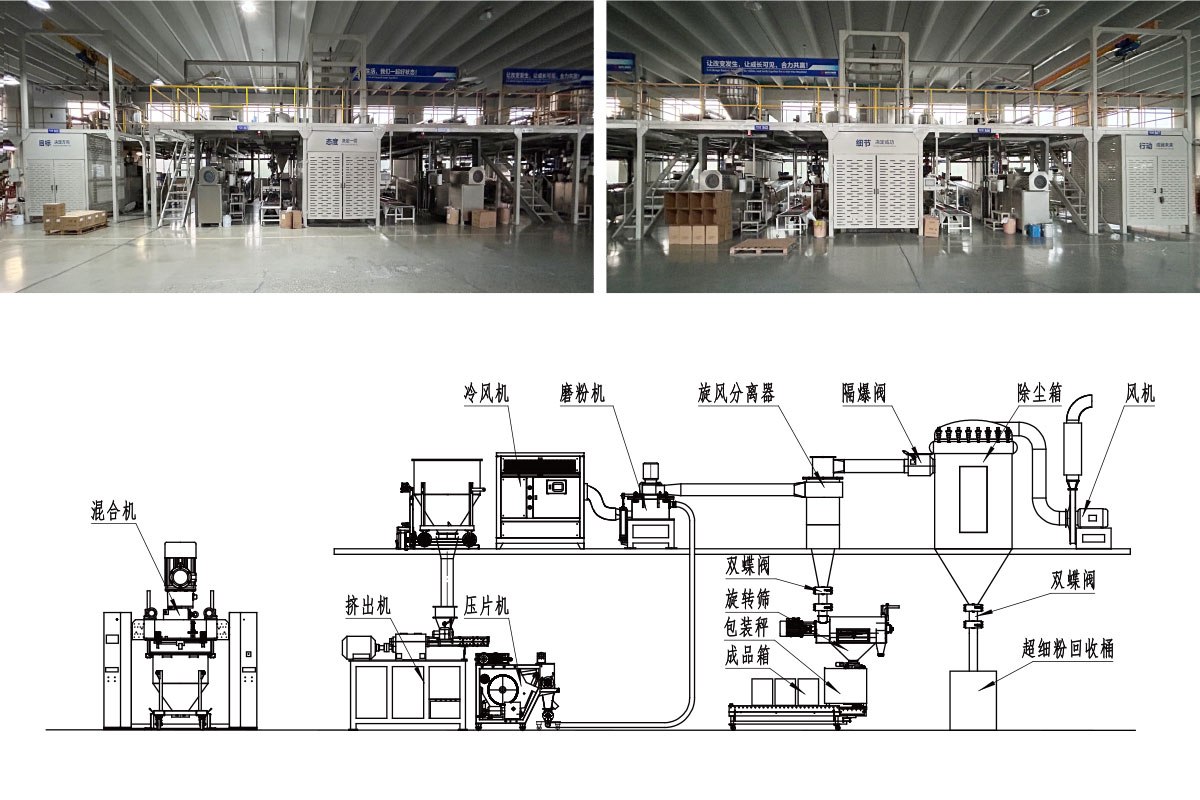

The Automatic Integrated Powder Coating Production Line is composed of mixer, extruder, Cooling Crusher, ACM grinder and automatic weighing packaging machine. The whole system is enclosed and pollution-free, and can provide the production line with production capacity of 80kg/h～2,000kg/h.
-
Small cover area, and high space utilization rate.
Few operators, low production costs, and high production efficiency.
Low-noise, energy-saving and environmental-protection.
The system is enclosed and pollution-free.
Controlled by touch screen and PLC, friendly human-machine interface, and easy to operate.
-
The technical parameters are under formulated management. The production management personnel can monitor in the office.
Complete safety protection system.
Convenient cleaning and maintenance.
High whole machine reliability.
-
Product
-
.
-
About Us
-
Contact Us
Tel： 86-631-3603188
Mobile： 86-157 2535 8772 (Domestic)
86-181 6200 7266 (International)
E-mail：decaisales@decaimach.com
-
Follow Us
Wechat
PRODUCT
Automatic Integrated Powder Coating Production Line
Technical features
Technical Parameter
| Output(kg/hr) | Mixer | Extruder | Tablet Press | Mill |
| 80-100 | FHJ-150/PHJ-150 | SLJ-35 | GYPJ526/YPJ-408/YPR-100 | ACM-07 |
| 120-150 | FHJ-300/PHJ-300 | SLJ-41 | GYPJ640/YPJ-5010/YPR-300 | ACM-10 |
| 200-300 | FHJ-300/PHJ-500 | SLJ-55 | GYPJ850/YPJ-5012/YPR-500 | ACM-20 |
| 400-500 | FHJ-1000/PHJ-500 | SLJ-65A | GYPJ1060/YPJ-6012/YPR-1000 | ACM-30 |
| 700-800 | FHJ-1000/PHJ-800 | SLJ-75A/SLJ-65B | GYPJ1260/YPJ-7012 | ACM-40 |
| 800-1000 | FHJ-1000 | SLJ-95/SLJ-7BA | GYPJ1570 | ACM-50 |
| Model | Output(kg/hr) | Area(㎡) | Operator | Noise Pollution |
| DC-100 | 80-120 | 10 | 1 | low |
| DC-200 | 150-200 | 40-50 | 1 | low |
| DC-300 | 300-400 | 40-50 | 1 | low |
| DC-500 | 500-700 | 50-60 | 1-2 | low |
| DC-800 | 800-1000 | 55-71 | 1-2 | low |
| DC-1000 | 1000-1500 | 72-80 | 1-2 | low |
